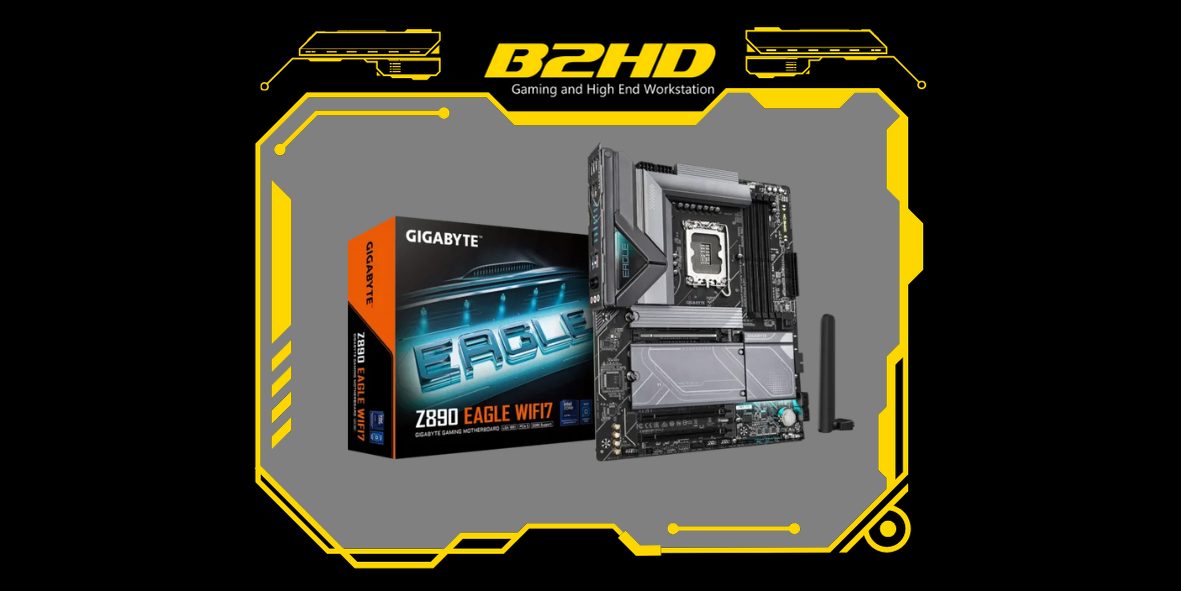

GIGABYTE Z890 EAGLE WIFI7 Intel LGA 1851 ATX Motherboard
Available Colors
Gigabyte ( GIGABYTE Z890 EAGLE WIFI7 Intel LGA 1851 ATX Motherboard )
Unlimited memory performance
EAGLE motherboards enhance DDR5 memory performance and provide excellent compatibility with a variety of advanced technologies.
* Memory overclocking and XMP support may vary. Please refer to the Qualified Vendor List (QVL) and note that product features may differ by model.
Digital Twin VRM power supply design.
Provides stable and powerful power to take your overclocking to the next level.
The 14-phase VCORE DrMOS 60A unlocks the power of multi-core CPUs for superior performance.
* 7+7 phase parallel power supply design
1-phase VCCGT DrMOS 40A optimized for integrated GPU operation and CPU-based memory management.
The 2-phase VCCSA DrMOS 60A efficiently powers the PCIe slots connected to the CPU for uninterrupted operation.
USB4 with 40Gbps speed and DP-Alt support.
The latest USB4 Type-C port delivers data transfer speeds of up to 40 Gbps, supporting a wide range of applications, including efficient device charging and support for high-resolution display connections. It's ideal for video editing, transferring large files, and data-intensive tasks.
Wi-Fi 7 delivers the ultimate VR experience.
Wi-Fi 7 is revolutionizing the world of VR with superior bandwidth and low latency, delivering a smooth and seamless virtual reality experience.
160 MHz channel
Wi-Fi 7 supports wider 320/160 MHz frequency channels, significantly increasing bandwidth for unprecedented data transfer speeds.
4K-QAM
With 4K-QAM Wi-Fi 7 technology, data throughput is increased, resulting in faster file transfers and seamless streaming.
Multi-link Operation
Wi-Fi 7's Multi-Link Operation (MLO) technology enables efficient bandwidth allocation, such as separating 2.4GHz for streaming and 5/6GHz for gaming, for a superior and uninterrupted network experience.
Absolutely low latency.
With its exceptionally low latency, Wi-Fi 7 reduces delays, making it ideal for applications that require real-time performance, such as video conferencing and competitive online gaming.
High-grade capacitors for audio systems.
These high-quality capacitors ensure high resolution and accuracy in sound, resulting in the most realistic sound effect.
Noise interference shielding panel
Isolate analog audio components that are sensitive to noise from any noise that might occur directly on the PCB.
All images are for illustrative purposes only.
Gigabyte ( GIGABYTE Z890 EAGLE WIFI7 Intel LGA 1851 ATX Motherboard )
model
Brand
Gigabyte
Model
Z890 EAGLE WIFI7
CPU
Socket
1851 (Arrow Lake)
Wattage
125W
Chipset
Intel Z890
Series
Core Ultra 5 , Core Ultra 7 , Core Ultra 9
memory
Slot
4
Memory Type
DDR5
Max. Capacity
256 GB
Speed
5600 , 5600 (OC) , 5800 , 5800 (OC) , 6000 , 6000 (OC) , 6200 , 6200 (OC) , 6400 , 6400 (OC) , 6600 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) , 7400 (OC) , 7600 (OC) , 7800 (OC) , 7900 (OC) , 7950 (OC) , 8000 (OC) , 8200 (OC) , 8266 (OC) , 8400 (OC) , 8600 (OC) , 8800 (OC) , 8933 (OC) , 9066 (OC), 9200 (OC)
Graphic & Audio
Graphic
Requires a CPU with Integrated Graphics.
Integrated Graphics Processor-Intel HD Graphics support:
—
• 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version
—
• 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version
—
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
—
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Storage
SATA 2
- Port
SATA 3
4 Port
RAID
- RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
- RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
M.2
4 x M.2 Connectors
—
CPU:
• 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
• 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
—
Chipset:
• 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
• 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) Port
expansion slots
Details
CPU:
• 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
—
Chipset:
• 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2)
Slot
1 x PCIe 5.0 x16 Slot , 2 x PCIe 4.0 x16 Slot
network
LAN
Realtek 2.5GbE LAN
LAN Speed
100 / 1000 / 2500 Mbps
Wireless
Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- Bluetooth 5.4
- Support for 11be 160MHz wireless standard
—
(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Back Panel I/O Ports
USB 2.0
4 Port
USB 3.0
- Port
USB 3.1
- Port
Serial
- Port
USB 3.2
1 x USB4 USB Type-C (DisplayPort – Actual support may vary by CPU)
2 x USB 3.2 Gen 2 Type-A (red)
3 x USB 3.2 Gen 1 Type-A Port
D-Sub (VGA)
- Port
DVI
- Port
HDMI
- Port
DisplayPort
1 Port
Audio
3 Port
PS/2
No
Additional
2 x Antenna connectors (2T2R)
LAN
1 Port
Form Factor
Form Factor
ATX
Power Connector
24 + 8 + 8 Pin
Dimension
30.5 x 24.4 cmmodel
Brand
Gigabyte
Model
Z890 EAGLE WIFI7
CPU
Socket
1851 (Arrow Lake)
Wattage
125W
Chipset
Intel Z890
Series
Core Ultra 5 , Core Ultra 7 , Core Ultra 9
memory
Slot
4
Memory Type
DDR5
Max. Capacity
256 GB
Speed
5600 , 5600 (OC) , 5800 , 5800 (OC) , 6000 , 6000 (OC) , 6200 , 6200 (OC) , 6400 , 6400 (OC) , 6600 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) , 7400 (OC) , 7600 (OC) , 7800 (OC) , 7900 (OC) , 7950 (OC) , 8000 (OC) , 8200 (OC) , 8266 (OC) , 8400 (OC) , 8600 (OC) , 8800 (OC) , 8933 (OC) , 9066 (OC), 9200 (OC)
Graphic & Audio
Graphic
Requires a CPU with Integrated Graphics.
Integrated Graphics Processor-Intel HD Graphics support:
—
• 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version
—
• 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version
—
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
—
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Storage
SATA 2
- Port
SATA 3
4 Port
RAID
- RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
- RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
M.2
4 x M.2 Connectors
—
CPU:
• 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
• 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
—
Chipset:
• 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
• 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) Port
expansion slots
Details
CPU:
• 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
—
Chipset:
• 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2)
Slot
1 x PCIe 5.0 x16 Slot , 2 x PCIe 4.0 x16 Slot
network
LAN
Realtek 2.5GbE LAN
LAN Speed
100 / 1000 / 2500 Mbps
Wireless
Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- Bluetooth 5.4
- Support for 11be 160MHz wireless standard
—
(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Back Panel I/O Ports
USB 2.0
4 Port
USB 3.0
- Port
USB 3.1
- Port
Serial
- Port
USB 3.2
1 x USB4 USB Type-C (DisplayPort – Actual support may vary by CPU)
2 x USB 3.2 Gen 2 Type-A (red)
3 x USB 3.2 Gen 1 Type-A Port
D-Sub (VGA)
- Port
DVI
- Port
HDMI
- Port
DisplayPort
1 Port
Audio
3 Port
PS/2
No
Additional
2 x Antenna connectors (2T2R)
LAN
1 Port
Form Factor
Form Factor
ATX
Power Connector
24 + 8 + 8 Pin
Dimension
30.5 x 24.4 cm
