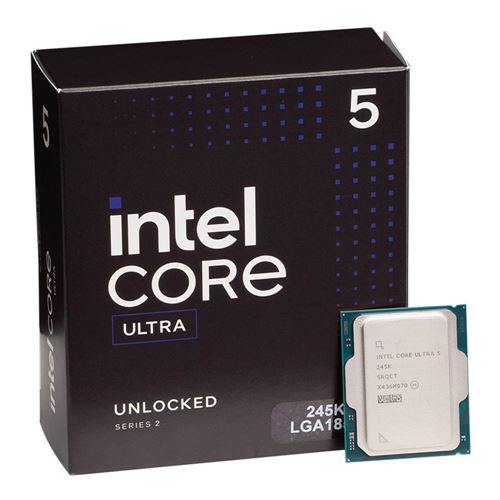

Intel® Core™ Ultra 5 Desktop Processor 245K 14 cores (6 P-cores + 8 E-cores) up to 5.2 GHz

Intel ( Intel® Core™ Ultra 5 Desktop Processor 245K 14 cores (6 P-cores + 8 E-cores) up to 5.2 GHz )

CPU ModelIntel Core Ultra 5 245K

CPU SocketLGA 1851

UnlockedYes

Number of Cores14 (6 x P-Cores + 8 x E-Cores)

Base Clock SpeedP-Core: 4.2 GHz

E-Core: 3.6 GHz

Maximum Boost SpeedP-Core Turbo: 5.2 GHz

P-Core Thermal Velocity Boost: 5.2 GHz

E-Core Turbo: 4.6 GHz

Thermal Design Power (TDP, Max)159 W

Included Thermal SolutionNo

Integrated GraphicsIntel Graphics

General

CPU ModelIntel Core Ultra 5 245K

CPU SocketLGA 1851

Maximum CPU Configuration1S

Maximum Number of PCIe Lanes20 (Revision 5.0)

4 (Revision 4.0)

UnlockedYes

Performance

Number of Cores14 (6 x P-Cores + 8 x E-Cores)

Number of Threads14

Base Clock SpeedP-Core: 4.2 GHz

E-Core: 3.6 GHz

Maximum Boost SpeedP-Core Turbo: 5.2 GHz

P-Core Thermal Velocity Boost: 5.2 GHz

E-Core Turbo: 4.6 GHz

Dedicated AI CoresYes: 13 TOPS

L3 Cache24 MB

Memory Support

Maximum Capacity192 GB

Memory SupportDDR5 Up to 6400 MT/s

ECC MemoryNo

Channel ArchitectureDual Channel

Optane Memory SupportNo

Power

Thermal Design Power (TDP, Max)159 W

Included Thermal SolutionNo

Maximum Temperature221°F / 105°C

Thermal Monitoring TechnologiesYes

Technology

AES SupportYes

ExtensionAVX 2.0, SSE 4.1/4.2

Instruction Set64-Bit

VirtualizationYes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT)

DMIDMI4 (16 GT/s)

vPro SupportYes

Performance TechnologiesDeep Learning Boost, Gaussian and Neural Accelerator 3.5, Intel AI Boost, Intel Thread Director, SpeedShift, Stable Image Platform Program, Turbo Boost 2.0, Turbo Boost Max 3.0

Security TechnologiesControl-Flow Enforcement (CET), Device Protection with Boot Guard, Execute Disable Bit, MBE (Mode-Based Execute) Control, OS Guard, Secure Key

Integrated Graphics

Integrated GraphicsIntel Graphics

Maximum Resolution Support7680 x 4320 at 60 Hz

Supported APIsDirectX: 12

OpenGL: 4.5

OpenCL: 3

Number of Displays4

Output SupporteDP, DisplayPort, HDMI

Packaging Info

Package Weight0.2 lb

Box Dimensions (LxWxH)4.9 x 4.6 x 1.8"
