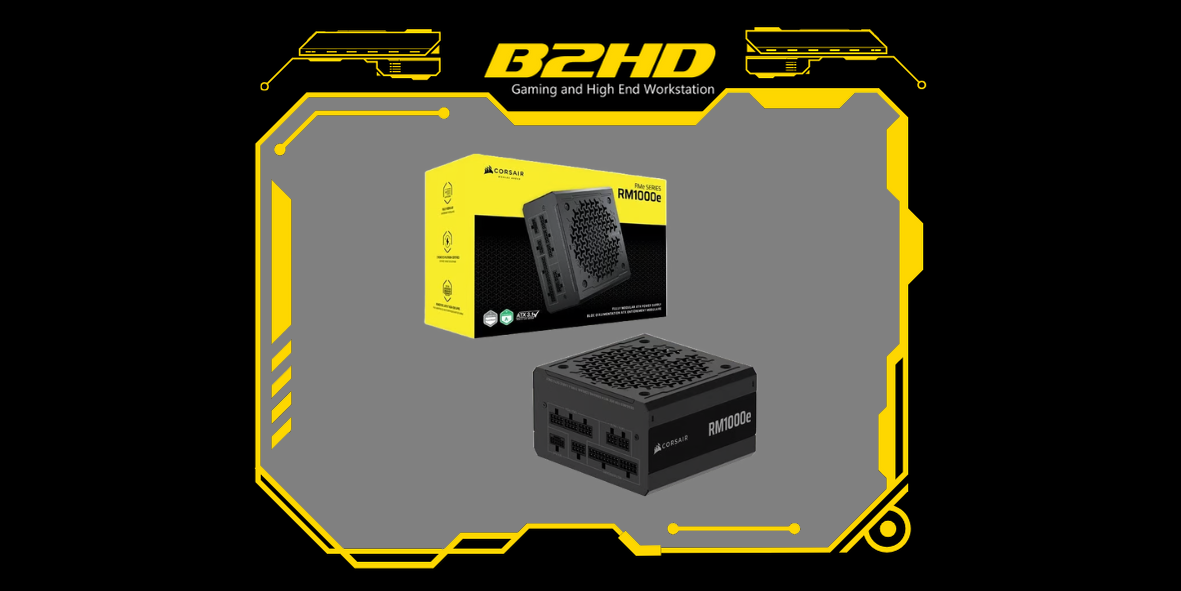

corsair RMe Series RM1000e Fully Modular Low-Noise ATX Power Supply
Available Colors
Corsair ( corsair RMe Series RM1000e Fully Modular Low-Noise ATX Power Supply )
BUILD WITH THE BEST
50 SERIES GPUs ARE HERE
Pair a next-gen GPU with quality CORSAIR components for top-shelf performance and no hassles, right out of the box.
KEEP IT NEAT AND TIDY
FULLY MODULAR CABLING
Keep cable clutter down by connecting only the cables your system needs. A native 600W 12V-2x6 GPU connector and multiple 8-pin PCIe connectors mean RMe power supplies more than meet the needs of modern and upcoming GPUs a
ON THE CUTTING-EDGE
ATX 3.1 CERTIFIED
The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMe Series PSUs are formally certified for ATX 3.1 compliance.
PCIe 5.1 12V-2x6 GPU cables included for use with modern and next-gen graphics cards.
CYBENETICS GOLD CERTIFIEDSteady power output at up to 89% overall efficiency and Cybenetics™ Gold certified for lower power consumption, less noise, and cooler temperatures.
LOW NOISE OPERATION IN A COMPACT SIZE
A compact 140mm-long casing ensures an easy fit in modern enthusiast PC cases.
A 120mm rifle bearing fan with a specially calculated fan curve keeps fan noise down, even when operating at full load.
BUILT TO LAST
TECHNOLOGY AND RELIABILITY
For consistent, reliable power and superb electrical performance, each RMe Series power supply features a robust resonant LLC topology with DC-DC conversion and 105° rated industrial-grade capacitors.
With precise timings, RMe supports Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.
Our award-winning service means you can enjoy your gear worry-free.
RM1000e POWER TABLE
MODEL
RPS0217
PART NO.
75-006462
AC INPUT RATING
AC INPUT
100–240V
INPUT CURRENT
10A - 5A
FREQUENCY
47~63Hz
MAX LOAD
MAX OUTPUT
+3.3V
20A
150W+5V
20A
+12V
62.5A
1000W
+5VSB
3A
15W
TOTAL POWER
1000W
RM1000e CABLE LISTING
QTY
CABLE
CONNECTORS PER CABLE
TOTAL CONNECTORS
CONNECTOR SPACING
TOTAL LENGTH
CABLE TYPE
1
Modular ATX 24-pin
1
1
-
610mm
(± 10mm)
Debossed
2
EPS / ATX 12V 8-pin (4+4)
1
2
-
750mm
(± 10mm)
Debossed
1
12V-2x6 (12+4) Pin
1
1
-
650mm
(± 10mm)
Debossed
1
12V-2x6 to Dual 8-Pin (6+2)
2
2
-
650mm
(± 10mm)
Debossed
2
PCIe 8-Pin (6+2)
1
2
-
650mm
(± 10mm)
Debossed
1
SATA (4 Straight SATA)
4
4
450mm, 100mm, 100mm, 100mm
750mm
(± 10mm)
Debossed
1
SATA / PATA (2 Straight SATA) (2 Straight PATA)
4
4
450mm, 100mm, 100mm, 100mm
750mm
(± 10mm)
Debossed
Corsair ( corsair RMe Series RM1000e Fully Modular Low-Noise ATX Power Supply )
- Manufacturer (OEM): HEC
- Max Power: 1000W
- Cybenetics Efficiency: [115V] Cybenetics Platinum (89.483%), [230V] Cybenetics Platinum (91.576%)
- Noise: Cybenetics A- (25-30 dB[A])
- Compliance: ATX v3.1, EPS 2.92
- Operating Temperature (Continuous Full Load): 0 – 50 °C
- Alternative Low Power Mode support: Yes
- Power 12V combined: 1000W
- Number of 12V rails: 1
- Power 5V + 3.3v: 150W
- Power 5VSB: 15W
- Cooling: 120mm Rifle Bearing Fan (HA1225H12SF-Z)
- Semi-Passive Operation: ✓
- Modular Design: Yes (Fully)
- High Power Connectors: 2x EPS (2x cables), 4x PCIe 6+2 pin (3x cables), 1x PCIe 12+2 pin (600W)
- Peripheral Connectors: 6x SATA (2x cables), 2x 4-pin Molex (1x cable)
- ATX Cable Length: 600mm
- EPS Cable Length: 740mm
- 12+4 pin PCIe Cable Length: 640mm
- 6+2 pin PCIe Cable Length: 640mm
- Distance between SATA / 4-pin Molex: 100mm
- In-cable capacitors: No
- Dimensions (W x H x D): 150 mm x 85 mm x 140mm
- Weight: 1.65 kg (3.64 lb)
- MSRP (excluding VAT): $170
