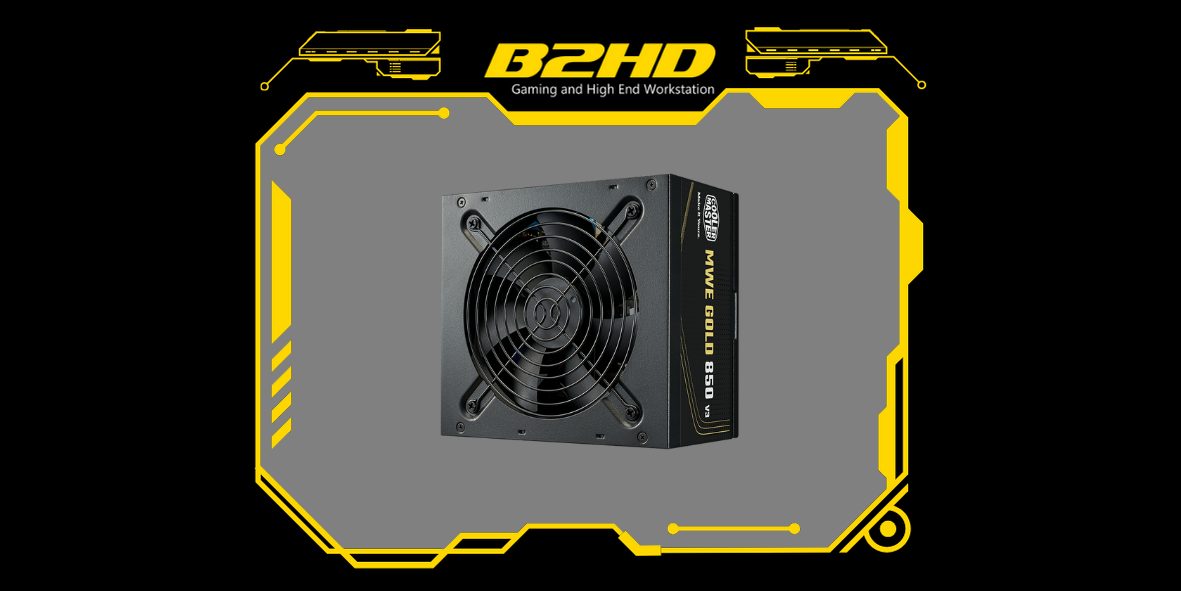

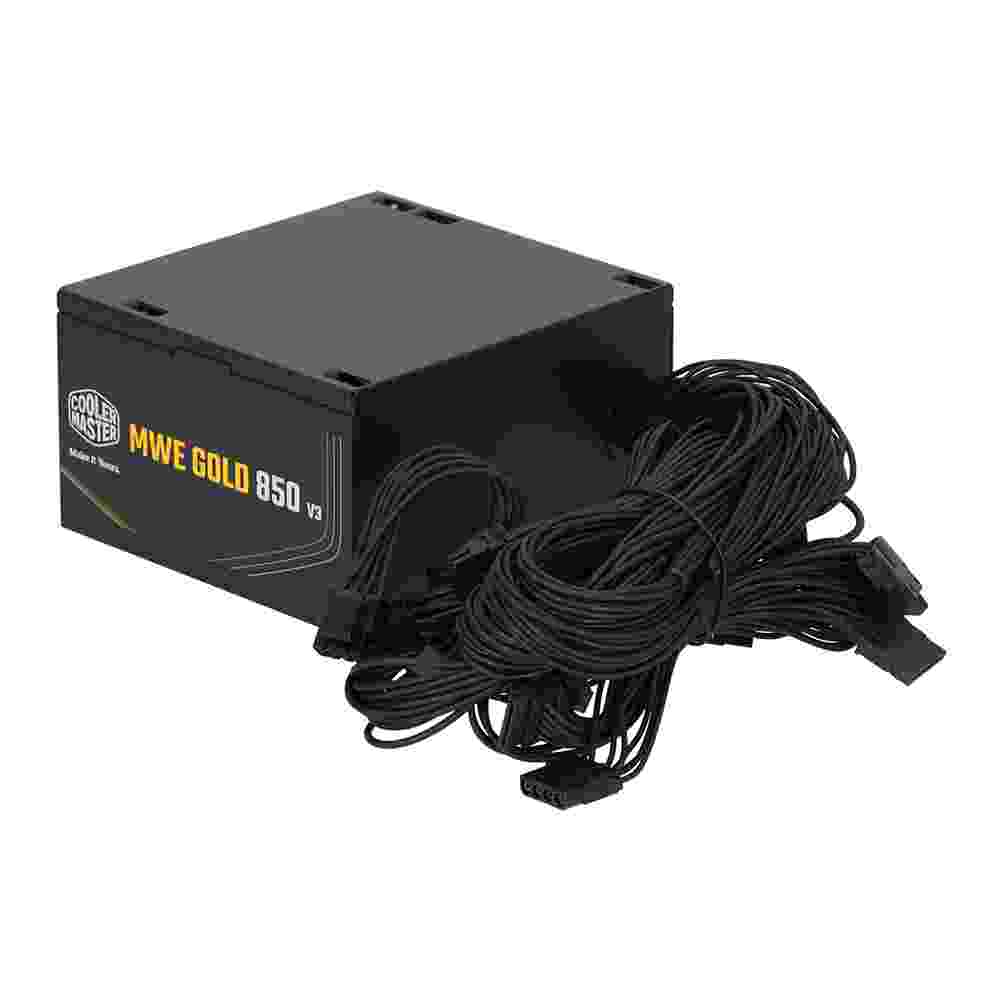

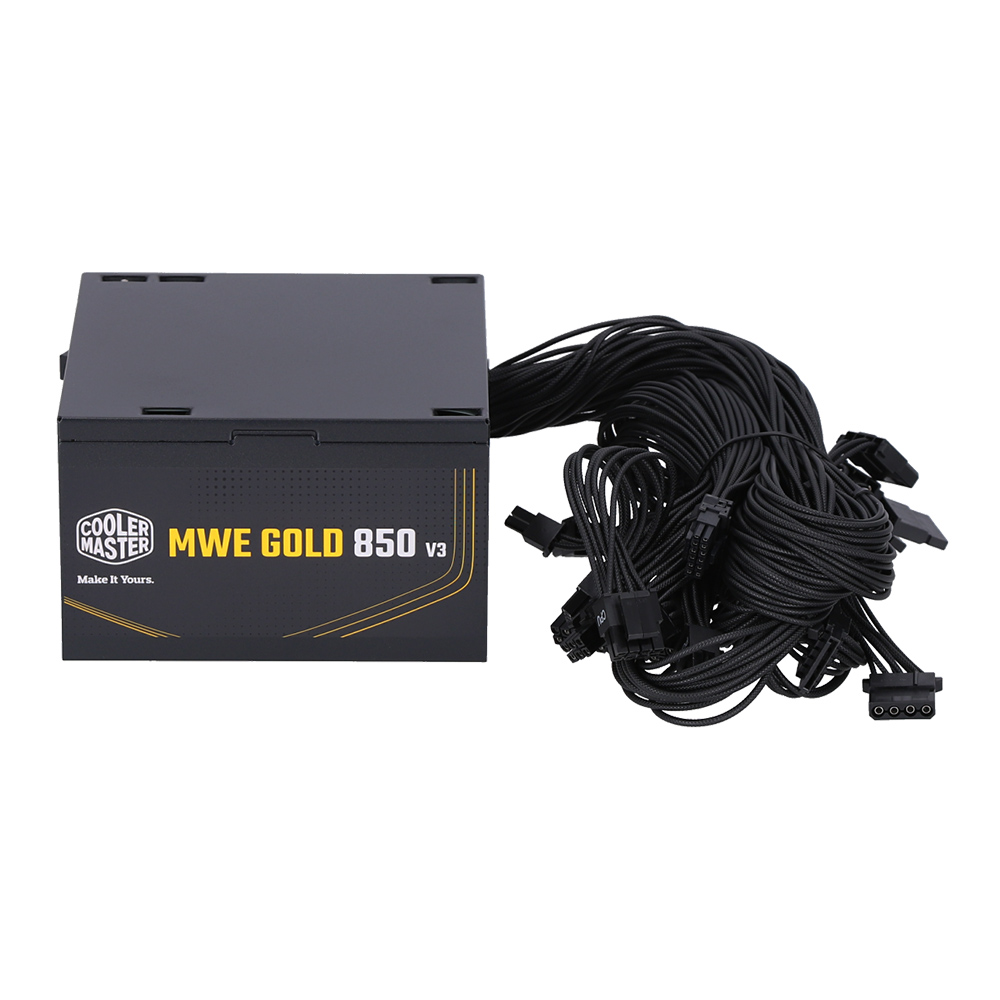

Cooler Master MWE GOLD 850 V3 850W Non-modular Power Supply
Available Colors
Coolermaster ( Cooler Master MWE GOLD 850 V3 850W Non-modular Power Supply )
Supports ATX 3.1 and durable 12V-2x6 cables.
This ATX 3.1 compliant power supply can deliver up to 200% peak power, ideal for future high-power generation graphics cards. It features a 180-degree 12+4 pin (12V-2x6) connector and supports a maximum power consumption of 450W for mainstream graphics cards.
Quiet HDB fan
Hydrodynamic bearing fans provide long-lasting quiet operation and efficient cooling.
Premium braided EPS connectors
It comes with two 4-pin EPS connectors for comprehensive support of current motherboards, along with high-quality braided cables that enhance durability, flexibility, and provide a clean, professional look.
All images are for illustrative purposes only.
Coolermaster ( Cooler Master MWE GOLD 850 V3 850W Non-modular Power Supply )
Specifications
- Model
- MPE-8506-ACAG-B**, MPE-7506-ACAG-B**, MPE-6502-ACAAG-3B**, MPE-5502-ACAAG-3B**
- ATX Version
- ATX 12V Ver. 3.1
- PFC
- Active PFC
- Input Voltage
- 100-240V
- Input Current
- 10-6A (850/750W), 10-5A (650W), 8-4A (550W)
- Input Frequency
- 50-60Hz
- Dimensions (L x W x H)
- 140 x 150 x 86 mm
- Fan Size
- 120mm
- Fan Bearing
- HDB
- Fan Speed
- 2400 RPM (850/750/650W), 1800 RPM (550W)
- Efficiency
- ≥90% @ Typical Load
- 80 PLUS Rating
- 80 PLUS Gold
- ErP 2014 Lot 3
- Yes
- Operating Temperature
- 0-40°C
- Power Good Signal
- 100 - 150 ms
- Hold Up Time
- ≥16ms at 80% Load
- MTBF
- >100,000 Hours (850/750W), >100,000 Hours @ 25℃ambient (650/550W)
- Protections
- UVP / OVP / OPP / OTP / SCP / OCP
- Regulatory
- cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.)
- ATX 24 Pin Connectors
- 1
- EPS 8 Pin / 4+4 Pin Connectors
- 2
- PCI-e 6+2 Pin Connectors
- 4 (850/750/650W), 2 (550W)
- SATA Connectors
- 6
- Peripheral 4 Pin Connectors
- 3
- 12V-2x6 (12+4 Pin) Connectors
- 1 (850/750W)
- Series
- MWE Gold Series
- Modular
- Non Modular
- Form Factor
- ATX
- 80 Plus Efficiency
- Gold
