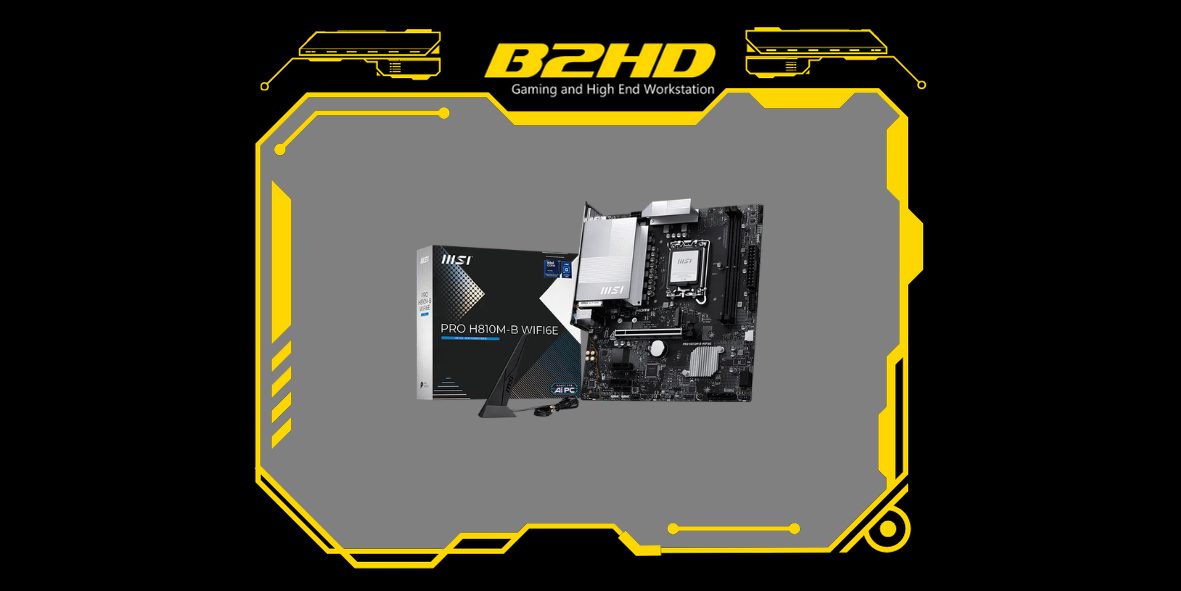

MSI PRO H810M-B WIFI6E DDR5 LGA 1851 ATX Motherboard

MSI ( MSI PRO H810M-B WIFI6E DDR5 LGA 1851 ATX Motherboard )

Brand

MSI

Model

PRO H810M-B WIFI6E

CPU

Socket

1851 (Arrow Lake)

Wattage

125W

Chipset

Intel H810

Series

Core Ultra 5 , Core Ultra 7 , Core Ultra 9

memory

Slot

2

Memory Type

DDR5

Max. Capacity

128 GB

Speed

4800 , 5200 , 5200 (OC) , 5600 (OC) , 6000 , 6400 (OC)

Graphic & Audio

Graphic

1 x HDMI supporting HDMI 2.1, maximum resolution 4K 60 Hz*

1 x DisplayPort supporting DisplayPort 1.4, maximum resolution 4K 60 Hz*

—

*Only compatible with processors that include integrated graphics. Graphics specifications may vary depending on the installed CPU.

Audio

Realtek ALC897 Codec

High Definition Audio 7.1 Channel System

Storage

SATA 2

- Port

SATA 3

4 Port

RAID

No

M.2

1 x M.2

—

M.2_1 (from chipset) Supports up to PCIe 4.0 x 4, supports 2280/2260 size devices

—

*Please check the manual for limitations regarding the M.2 SSD port heatsink.

expansion slots

Details

1 x PCIe x16 slot

- PCI_E1 supports up to PCIe 5.0 x 16 (from CPU)

—

2 x PCIe x1 slots

- PCI_E2 and PCI_E3 support up to PCIe 4.0 x 1 (from H810 chipset)

Slot

1 x PCIe 5.0 x16 Slot , 2 x PCIe 4.0 x1 Slot

network

LAN

Realtek 8125 2.5Gbps LAN

LAN Speed

100 / 1000 / 2500 Mbps

Wireless

Wi-Fi 6E

- Wireless module pre-installed in M.2 (Key-E) slot

- Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz* (160MHz) up to 2.4Gbps

- Supports 802.11 a/b/g/n/ac/ax

- Supports Bluetooth 5.3**, FIPS, FISMA

—

*6GHz band support may depend on country regulations, and Wi-Fi 6E will be available in Windows 11 version 24H2.

**Bluetooth version may be updated; please check the chipset manufacturer's website for details. Wi-Fi and Bluetooth 5.4 will be available in Windows 11 version 24H2.

Back Panel I/O Ports

USB 2.0

4 Port

USB 3.0

- Port

USB 3.1

- Port

Serial

- Port

USB 3.2

2 x USB 5Gbps Type-A Ports

D-Sub (VGA)

- Port

DVI

- Port

HDMI

1 Port

DisplayPort

1 Port

Audio

3 Port

PS/2

No

Additional

2 x Wi-Fi antenna connectors

LAN

1 x 2.5Gbps LAN port (RJ45)

Form Factor

Form Factor

Micro-ATX

Power Connector

24 + 8 Pin

Dimension

24.4 x 22.0 cm
