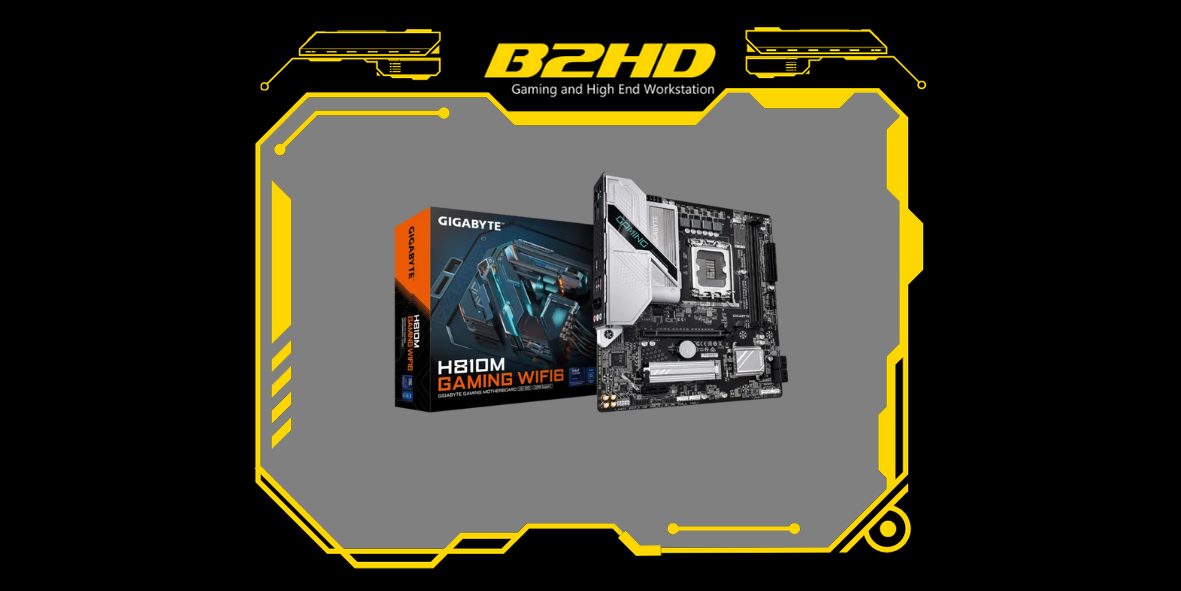

Gigabyte H810M Gaming WIFI 6 DDR5 LGA 1851 M - ATX Motherboard
Available Colors
Gigabyte ( Gigabyte H810M Gaming WIFI 6 DDR5 LGA 1851 M - ATX Motherboard )
Key Features
- Supports Intel® Core™ Ultra processors (Series 2)
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch: PCIe x16 Slot with Quick Release Design
- M.2 EZ-Latch Plus: Screwless installation for M.2 SSDs
- Friendly UI: Multi-Theme, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage: PCIe 4.0 x4 M.2 slots
- Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking: 2.5GbE LAN & Wi-Fi 6 802.11ax
- Extended Connectivity: HDMI, DisplayPort
OVERVIEW
Performance
Thermal
Connectivity
DIY Friendly
Brand New Gaming Experience
X3D Turbo Mode
Unleash New Era Gaming Performance with One-Click Activation.
X3D Turbo Mode's unique optimization parameters allow even Ryzen™ 9000 X3D gaming Performance enhance & Ryzen™ 9000 non-X3D processors to achieve similar gaming performance levels as their Ryzen™ X3D counterparts. Experience smoother gameplay, higher frame rates, and reduced latency with GIGABYTE's BIOS innovation- X3D Turbo Mode.
One-Click Acceleration:
Enhance Gaming FPS Performance with a single click.
Sturdy VRM Design
Steady Power
Better Play GAMING Series, steady power keeps your gaming smooth.
Hybrid VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.
4
VCORE Phases
Unlock the full power of your multi-core CPU for unmatched performance.
1
VCCGT Phase
Optimized for integrated GPU performance and memory management within the CPU.
2
VCCSA Phases
Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.
Cooling
Comprehensive Thermal
GAMING motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
Level Up Epic VRM heatsinks for non-stop gaming
4X
Massive cooling surface
Exceptional heat dissipation
M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Smart Fan 6
Cool. Quiet. Customized.
Easy & Friendly
Hassle-free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.
WIFI EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.
EZ-Latch Designs
User-friendly designs simplifying the assembly process.
* Images for reference only
M.2 EZ-Latch Plus
screwless installation for M.2 SSDs
PCIe EZ-Latch
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
Fast-Access Controls
Handy, Revert, Refresh
EZ Debug Zone
Q-FLASH Auto Scan
Connectivity
Future Connectivity
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.
All-round Connectivity
Wi-Fi 6
2.5 GbE LAN
Hi-Fi Audio
High-End Audio Capacitors
Audio Noise Guard
Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections.
UC BIOS
Restructured with user-centered and intuitive performance adjustment mechanisms.
Multi-Theme
Multiple BIOS skin with newly exclusive grayscale mode.
GIGABYTE Control Center
A unified software platform encompassing multiple GIGABYTE product.
RGB Fusion
Personalize the RGB illumination on your motherboard and connected peripherals.
Gigabyte ( Gigabyte H810M Gaming WIFI 6 DDR5 LGA 1851 M - ATX Motherboard )
- CPU
- LGA1851 socket: Support for Intel® Core™ Ultra Processors
- (Go to GIGABYTE's website for the latest CPU support list.)
- L3 cache varies with CPU
- Chipset
- Intel® H810 Express Chipset
- Memory
- Support for DDR5 6400/5600 MT/s memory modules
- 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
- (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
- Onboard Graphics
- Integrated Graphics Processor-Intel® HD Graphics support:
- - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
- * Support for HDMI 2.1 version and HDCP 2.3.
- - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@60 Hz
- * Support for DisplayPort 2.1 version.
- (Graphics specifications may vary depending on CPU support.)
- Audio
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
- * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
- Support for S/PDIF Out
- LAN
- Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- Wireless Communication module
- Realtek® Wi-Fi 6 RTL8851BE
- - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
- - BLUETOOTH 5.3
- - Support for 11ax 80MHz wireless standard
- (Actual data rate may vary depending on environment and equipment.)
- Expansion Slots
- CPU:
- - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
- * The PCIEX16 slot can only support a graphics card or an NVMe SSD.
- Chipset:
- - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
- Storage Interface
- Chipset:
- - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
- - 4 x SATA 6Gb/s connectors
- USB
- Chipset:
- - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
- - 5 x USB 2.0/1.1 ports on the back panel
- Chipset+2 USB 2.0 Hubs:
- - 4 x USB 2.0/1.1 ports available through the internal USB headers
- Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 2 x system fan headers
- 2 x addressable RGB Gen2 LED strip headers
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB Type-C® header, with USB 3.2 Gen 1 support
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
- 1 x serial port header
- 1 x Clear CMOS jumper
- Back Panel Connectors
- 1 x PS/2 keyboard/mouse port
- 1 x HDMI port (Note)
- 1 x DisplayPort (Note)
- 1 x USB 3.2 Gen 1 port
- 5 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks
- (Note) Actual support may vary by CPU.
- I/O Controller
- iTE® I/O Controller Chip
- H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
- * Whether the fan speed control function is supported will depend on the fan you install.
- BIOS
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Unique Features
- Support for GIGABYTE Control Center (GCC)
- * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
- Support for Q-Flash
- Support for Smart Backup
- Bundled Software
- Norton® Internet Security (OEM version)
- LAN bandwidth management software
- Operating System
- Support for Windows 11 64-bit
- Support for Windows 10 64-bit
- * The Intel® NPU driver is only supported on Windows 11.
- Form Factor
- Micro ATX Form Factor; 24.4cm x 21.5cm
