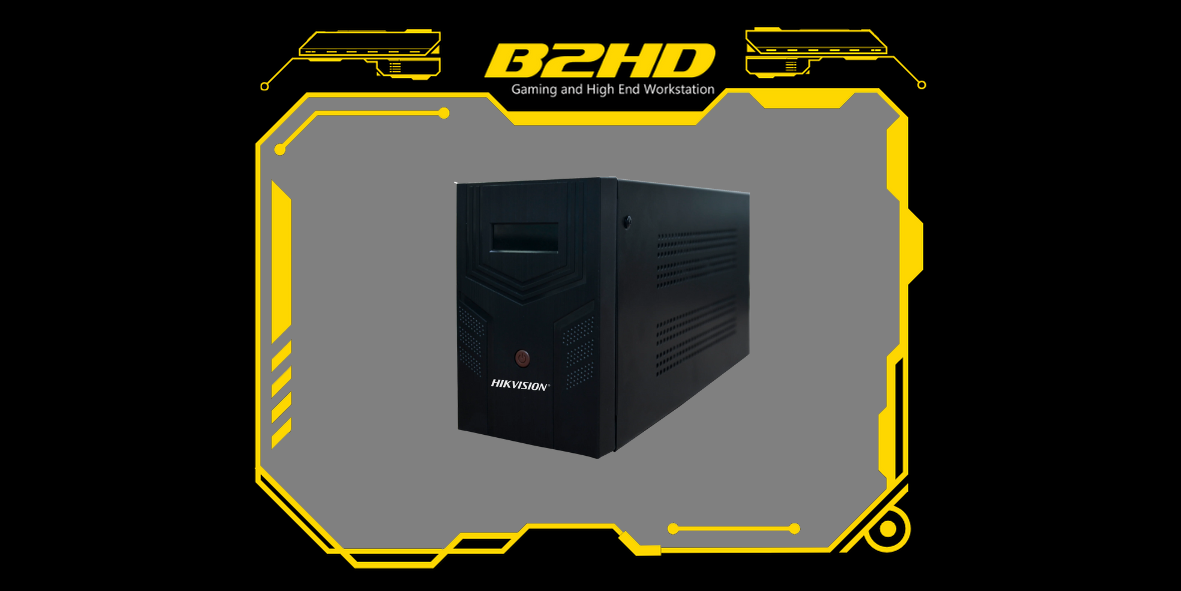

HIKVISION ( HIKVISION 2000VA DS-UPS2000-Q/T )
⚡ Power
- Capacity: 2000 VA / 1200 W
🔋 Battery
- Type: 12 V / 9 Ah × 2 pcs (Lead-acid)
- Recharge Time: 4–6 hrs (to 90% capacity)
- Typical Backup Time:
- 60W load → 116 mins
- 150W load → 44 mins
- 300W load → 20 mins
🔄 Input
- Voltage Range: 145–280 VAC ±5VAC; 70–145 VAC ±5VAC
- Frequency: 50/60 Hz self-adaptive
- Plug Type: UK BS1363, Type B (NEMA 5-15)
🔌 Output
- Frequency: 50/60 Hz self-adaptive
- Transfer Time: 2–6 ms (typical), 10 ms (max)
- Waveform: Simulated Sine Wave
- Voltage Range: 198–242 VAC / 99–121 VAC
- Outlet Type: Universal; Type B (NEMA 5-15)
- Outlet Number: 4 (4 + 4 bypass)
🛡️ Protection
- Surge protection
- Overload protection
- Discharge protection
- Short-circuit protection
📊 Display & Indicators
- LCD Screen: Input Voltage, Output Voltage, Battery capacity, Load level
- Alarm:
- Charging Mode: every 6 sec
- Low Battery: every 1 sec
- Overload: every 0.5 sec
- Fault: continuous sound
🌡️ General
- Operating Temperature: 0–40 °C (32–104 °F)
- Operating Humidity: 0–90% (non-condensing)
- Dimensions: 360 × 122 × 195 mm (14.17" × 4.80" × 7.68")
- Weight: ~12.4 kg (27.3 lbs)
