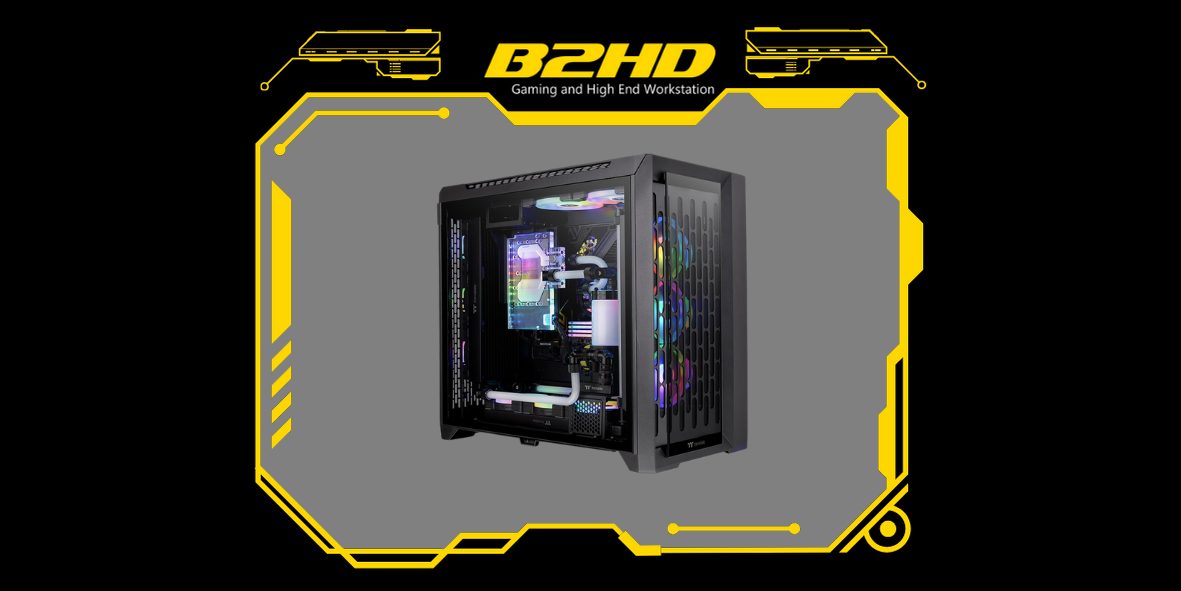

Thermaltake CTE C750 TG ARGB Full Tower Chassis

Thermaltake ( Thermaltake CTE C750 TG ARGB Full Tower Chassis )

P/N

CA-1X6-00F1WN-01Series

CTECASE TYPE

Full TowerDimension (H x W x D)

565.2 x 327 x 599.2 mm

(22.25 x 12.87 x 23.59 inch)

NET WEIGHT

16.7 kg / 36.82 lbs.

PANEL

4mm Tempered Glass x 2

Color

BlackMATERIAL

SPCC / ABSCOOLING SYSTEM

Front(intake):

140 x 140 x 25 mm CT140 ARGB fan (1500rpm, 30.5 dBA) x 1

Top(exhaust):

140 x 140 x 25 mm CT140 ARGB fan (1500rpm, 30.5 dBA) x 1

Rear(intake):

140 x 140 x 25 mm CT140 ARGB fan (1500rpm, 30.5 dBA) x 1Drive Bays

7 x 3.5” or 12 x 2.5”EXPANSION SLOTS

7MOTHERBOARDS

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),

12” x 9.6” (ATX), 12” x 13” (E-ATX)I/O Port

USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 4, HD Audio x 1PSU

Standard PS2 PSU (optional)FAN SUPPORT

Front:

3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm, 2 x 140mm, 1 x 140mm

2 x 200mm, 1 x 200mm

Top:

2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Right (M/B Side):

3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm, 2 x 140mm, 1 x 140mm

Rear:

3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm, 2 x 140mm, 1 x 140mm

2 x 200mm, 1 x 200mm

Bottom:

3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm, 2 x 140mm, 1 x 140mmRADIATOR SUPPORT

Front:

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm

Top:

1 x 240mm, 1 x 120mm

1 x 140mm

Right (M/B Side):

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm

Rear:

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm

Bottom:

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 280mm, 1 x 140mmCLEARANCE

CPU cooler max height:

190mm

VGA max length:

370mm (With radiator)

420mm (Without radiator)

PSU max length:

200mm
