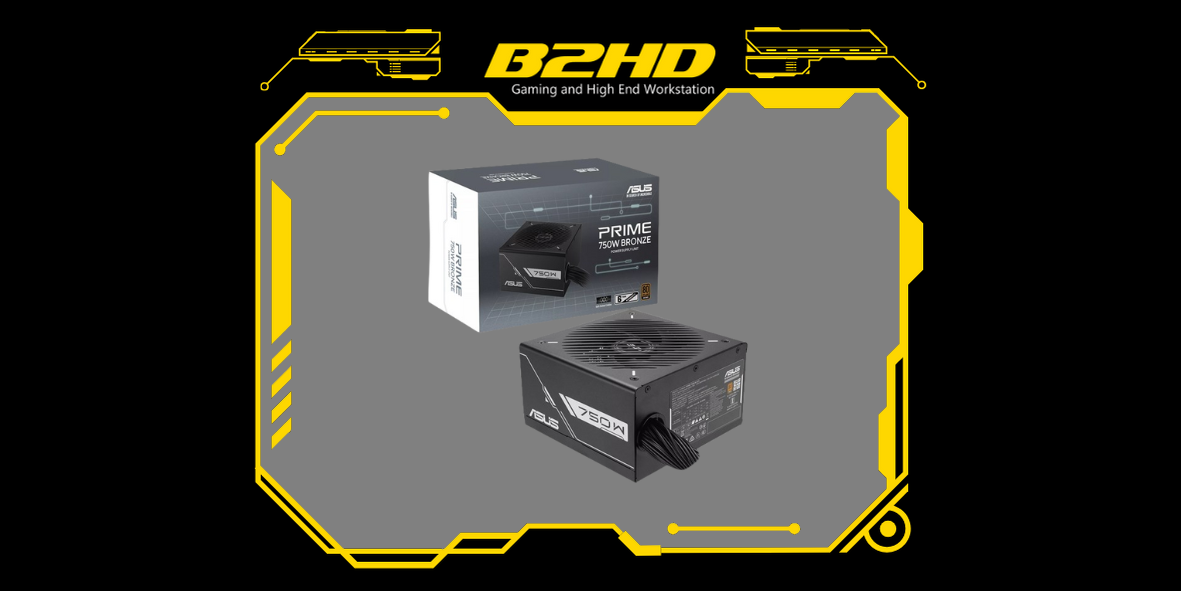

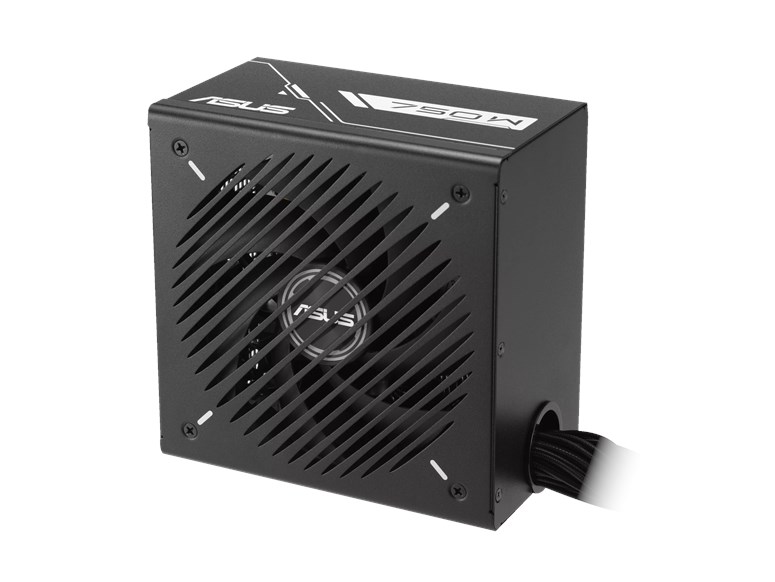

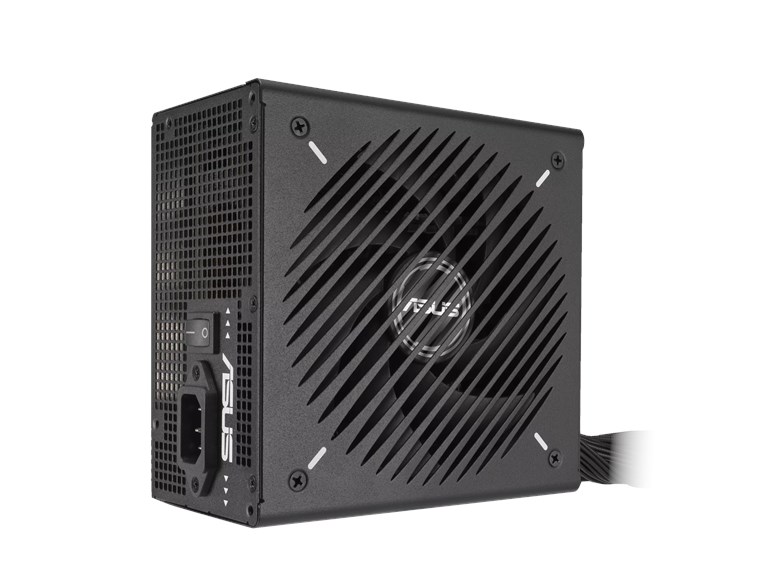

Asus Prime 750W 80Plus Bronze Power Supply
Available Colors
Asus ( Asus Prime 750W 80Plus Bronze Power Supply )
- Dual ball fan bearings that can last up to twice as long as sleeve bearing designs.
- An 80 Plus Bronze Certification is the result of low-ESR electrolytic capacitors and other premium components.
- Etched cables can be bent easily during installation.
Asus ( Asus Prime 750W 80Plus Bronze Power Supply )
Model PRIME-750B-BLACK
Intel Form Factor ATX12V
PFC Type Active PFC
Dimensions 150 x 150 x 86 mm
Efficiency 80Plus Bronze
MTBF >120,000 hrs @ 25°C
Protection Features OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials ROHS
AC Input Range 100-240Vac
DC Output Voltage +3.3V +5V +12V -12V +5Vsb
Maximum Load 20A 20A 62.5A 0.3A 2.5A
Combined Load 120W 120W 750W 3.6W 12.5W
Total Output 750W
Cable Connectors MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 8-pin x 3 SATA x 6 PERIPHERAL x 3
Package Contents Power Cord x 1 Motherboard Power cable x 1 (600mm) CPU cable x 2 (800mm) PCI-E 1-to-2 x 1 (600mm) PCI-E 1-to-1 x 1 (600mm) SATA 1-to-3 cable x 2 (400+120+120+mm) Peripheral 1-to-3 cable x 1 (400+120+120mm) User Manual x 1
Weight Single PSU : 2.2KG
Product Weight (with packing) : 3.067KG
0dB Technology No
