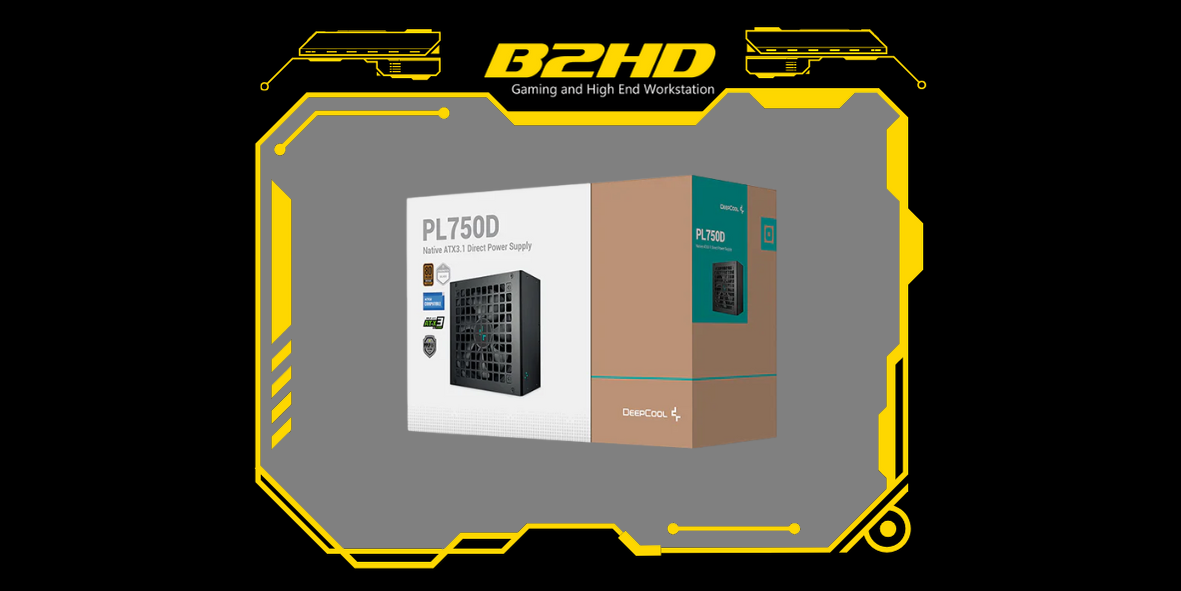

Deepcool PL750D 750W 80 PLUS Bronze Power Supply

Deep Cool ( Deepcool PL750D 750W 80 PLUS Bronze Power Supply )

DeepCool PL750D 80 PLUS Bronze Non-Modular Power Supply, 750W Power, ATX12V V3.0, Hydro Bearing 120mm Fan, Chinese Electrolytic Capacitors, Active PFC + DC to DC, Black | R-PL750D-FC0B-IN V2

PL750D

Native ATX3.0 Power Supply

NATIVE ATX3.0

Based on INTEL’s latest ATX3.0 standard, the PL750D has the ability to provide twice the total system power for 0.1 ms, so power spikes will never be an issue. A native PCIe 5.0 power connector is included and has been rated up to 450 watts.

Total Power Excursion

PREMIUM ELECTROLYTIC CAPACITORS

High-grade electrolytic capacitors allow the PL-D series of PSUs to keep the hold-up time to ≥ 16 ms under full load (100%), and they can easily handle power outages.

ROCK SOLID RELIABILITY

Provides reliable and stable power thanks to a well-designed dual-transistor forward topology. The PL-D utilizes active PFC and DC to DC conversion. The entire unit is made of high-quality parts and can operate at altitudes of up to 5,000 meters above sea level.

12VHPWR

CABLE

PAST, PRESENT, AND FUTURE

Equipped with three PCIe, two EPS, and a 16AWG 12VHPWR cable, the PL-D PSUs provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.

BOLD BRONZE

Certified 80 PLUS Bronze, ensuring at least 85% efficiency under typical loads (50%).

PEACE OF MIND

Includes a slew of well-rounded safeguards, including: OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO.

Main Power Connector (20+4)Pin x 1

x1

CPU(4+4)Pin x 2

x2

PCI-E(6+2)Pin x 1

x1

PCI-E(6+2)Pin x 2

X1

12VHPWR(16Pin) x 1

X1

SATA x 3 + 4Pin Peripheral x 1

X2
