Gamdias HELIOS M1-850B 850W PSU
Available Colors
Gamdias ( Gamdias HELIOS M1-850B 850W PSU )
Intelligent and reliable
The HELIOS M1-850B is a high-quality stealth fan that can achieve up to 85% efficiency and automatically adjusts its fan speed according to temperature. It is also characterised by a high build quality with its flat black cables and the 80 PLUS bronze certification.
SMART AND RELIABLE
The HELIOS M1-850B is a high quality stealth fan that can deliver up to 85% efficiency while automatically adjusting its fan speed according to temperature. It also has a high build quality with its flat black cables and 80 PLUS bronze certification.

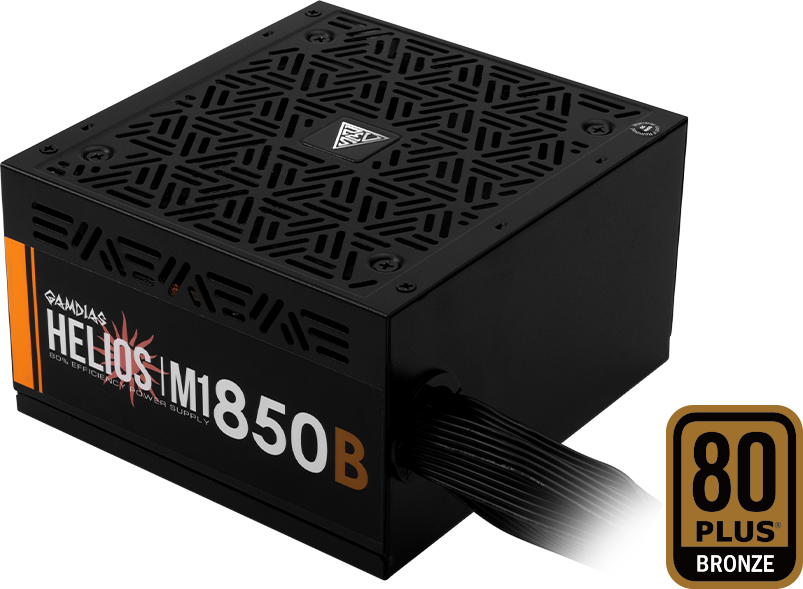

80 PLUS BRONZE CERTIFIED
Efficiency rating reflects how much power is retained on transfer, not build quality. HELIOS M1-850B, with an 80 PLUS Bronze efficiency rating, is a safe and lasting first-rate power supply unit.

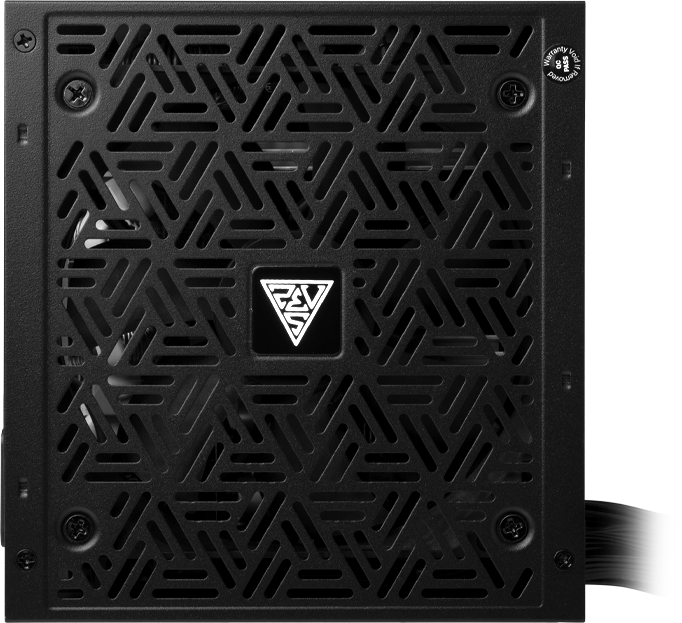

SMART VENTILATION
The power supply unit supports automatic fan speed optimization which adjusts its fan speed according to the temperature and load.

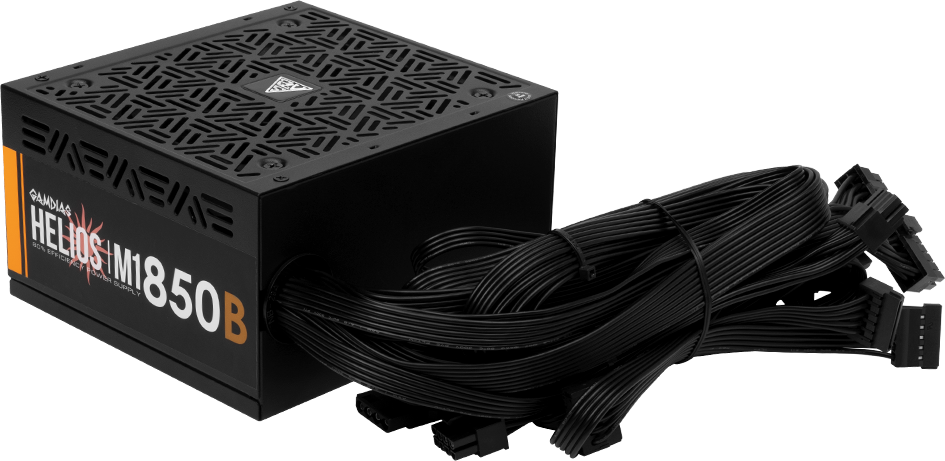

FLAT BLACK CABLES
The stealthy and flexible black cables are designed for easy cable installation, reducing clutter, and increase the airflow within the case.
Connector:
1 x 24-pin motherboard connector2 x 4+4-pin CPU EPS port4 x 6+2-pin GPU PCI-E ports6 x 5-pin SATA ports4 x 4-pin Molex connectors
Heavy duty protection
This power supply provides comprehensive protection and meets all the requirements to operate the system safely and stably.
Gamdias ( Gamdias HELIOS M1-850B 850W PSU )
Type : ATX12V v2.4
Efficiency : Meet 80 PLUS Bronze efficiency
Power Factor Correction : APFC with PF value of 0.99
Support MB Sync : No
Dimension (L x W x H) : 140 x 150 x 86 mm
Support C6/C7 power state : Yes
AC Input : 100-240V / 5.5-11A / 47-63Hz
DC Output : +3.3V / +5V / +12V / -12V / +5Vsb
Max. Output Current : 20A / 20A / 70A / 0.3A / 2.5A
Max. Output Power : 130W / 840W / 3.6W / 12.5W
Total Power : 850W
Protection : OVP / UVP / OPP / OCP / SCP / SP / ICP
Main Power : 1 (20+4 Pin)
CPU : 2 (4+4 Pin)
PCI-E : 4 (6+2 Pin)
SATA : 6 (5 Pin)
Molex : 4 (4 Pin)
Modular : Non Modular
Flat Cable : Yes
Silent Mode : No
DC to DC : Yes
