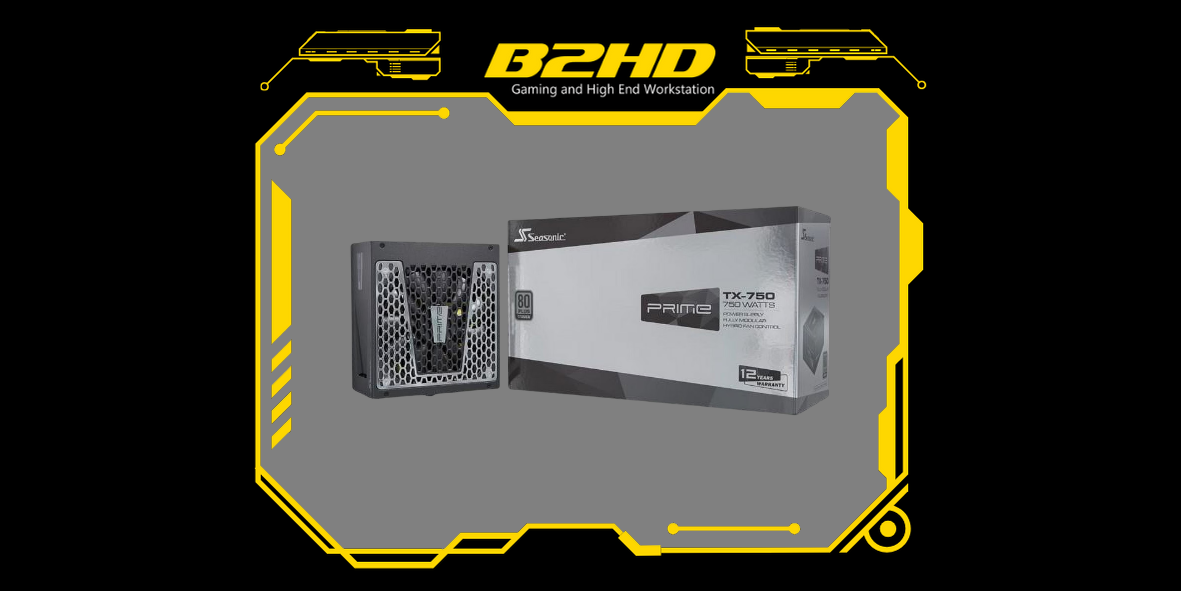

Seasonic Prime TX-750W 80+ Titanium Fully Modular Powersupply

Seasonic ( Seasonic Prime TX-750W 80+ Titanium Fully Modular Powersupply )

80PLUS^®

Titanium

Cybenetics Efficiency Level

ETA-A+

Cybenetics Noise Level

Lambda A+

Form Factor

ATX/EPS

Dimensions

150 × 170 × 86 mm

Fan Information

Fan Size

135 mm

Fan Control

Premium Hybrid Fan Control

Fan Bearing

Fluid Dynamic Bearing

Life Expectancy

50,000 hours at 40 °C, 15 % - 65 % RH

Cable Information

Modularity

Fully Modular

Cable type

Flat Black Cables

Electrical Features

Operating Temperature

0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly)

MTBF @ 25 °C, excl. fan

150,000 hours

AC Input

Full Range

Protection

OPP, OVP, UVP, OCP, OTP, SCP

Safety and Environmental

Safety and EMC

cTUVus, TUV, CB, CCC, BSMI, EAC

Environmental Compliance

Energy Star, RoHS, WEEE, ErP Lot 6, REACH

Power Output

AC Input

100 V - 240 V

9.5 - 4.5 A

50 Hz - 60 Hz

DC Output

Rail

+3.3 V

+5 V

+12 V

-12 V

+5 VSB

Maximum Power

20 A

20 A

62 A

0.3 A

3 A

100 W

744 W

3.6 W

15 W

Total continuous power

750 W
