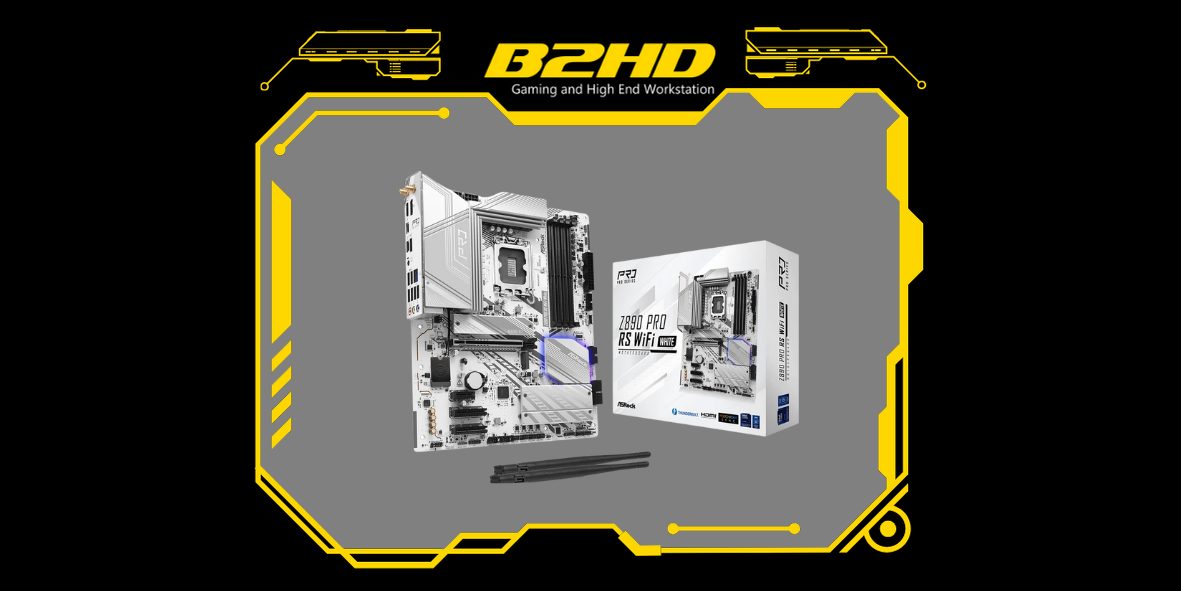

Asrock Z890 PRO RS WIFI white DDR5 LGA1851 ATX Motherboard
Available Colors
Asrock ( Asrock Z890 PRO RS WIFI white DDR5 LGA1851 ATX Motherboard )
ASRock Z890 Pro RS Wifi White DDR5 Intel ATX Motherboard
be the best
Embodying a modern and futuristic design, the ASRock Z890 Pro RS represents the pinnacle of innovation and performance. Built on the Intel Z890 chipset and featuring support for Socket 1851 and the latest Core Ultra Series 2 processors, this ATX motherboard strikes the perfect balance between cutting-edge specifications and user-centric design. With DDR5 memory support and PCIe 5.0, the Pro RS is engineered to deliver exceptional speed and efficiency. The inclusion of 2.5Gbps LAN ensures rapid connectivity, while Thunderbolt™ 4 and USB 3.2 Gen2x2 ports enhance its versatility, making this motherboard an ideal choice for enthusiasts and professionals seeking the ultimate in performance and aesthetics.
Z890
Intel Chipset
LGA 1851
CPU Socket
DDR5 DIMM
Max. 256GB
ATX
Form Factor
Expertly Assembled VRM
20K Capacitors
Dr. Mos/Power Phasing
Hi-Density Connection
20K Capacitors
The upgraded 20K Black capacitor is more than just an endurance enhancement, boosting lifespan to 20,000 hours and raising capacitance from 560uF to 1000uF. This upgrade delivers a range of benefits in one compact package: higher capacitance enables more charge storage, supporting the system under heavier loads. Ripple effects are reduced, ensuring smoother power delivery, while stable current output eliminates the risk of voltage instability.
1,000UF
Capacitance
20,000Hr
Lifespan
Unlock Memory Overclocking
6-Layer 2oz PCB
Power flows through the 6-layer PCB, carried by 2oz copper that stabilises signal traces with unwavering precision. It reinforces thermal management and maintains signal integrity, providing a solid foundation for high-performance memory modules. With every current, DDR5 is pushed to its limits, driving speed and efficiency with fantastic reliability, no matter the demand.
DDR5 XMP & EXPO
ASRock’s commitment to stability and reliability shines through every layer of its design. By enabling pre-tested profiles, users can push the limits of their system with confidence. For seamless overclocking, ensure that your memory modules are Intel® XMP or AMD EXPO™ compatible.
Pulsing With PCI
x1
x3
Express Excellence
ASRock's Blazing M.2 technology ignites your system with electrifying speed, harnessing the power of PCI Express 5.0 to deliver an astonishing 128GB/s transfer rate. This rapid flow of data invigorates your data access, making game loading times vanish and ensuring that every command is executed in a heartbeat. Enhanced by dual Hyper Gen4 M.2 slots, which are double the speed of the previous line, this synergy between speed and power allow for a seamless surge of performance, giving you the power to commnand a fleet of high-capacity SSDs at will.
No Tools Needed
ASRock introduces an innovative M.2 heatsink quick release mechanism, simplifying the installation process and allowing for effortless upgrades without tools.
Smooth Heat Dissipation
The M.2 bottom heatsink efficiently dissipates heat from the SSD through the motherboard PCB, optimising performance while ensuring system stability.
Intelligent Cooling Solutions
Heatsink
PWM/DC Fans
Fan-Tastic Tuning
Aluminium Heatsink
An optimised aluminium heatsink is used for efficient heat dissipation under heavy workloads such as gaming or productivity tasks. This ensures effortless system stability and durability.
Nahimic Audio
Audio Matters
Nahimic Audio delivers an immersive listening experience that is vibrant and rich in detail, regardless of whether you're using headphones, a headset, external or internal speakers.
Clear Communication
Powerful algorithms deliver clear, noise-free conversations with consistent vocal levels, enhancing sound quality and reducing interference for better clarity and less fatigue.
Sound Tracker
The Sound Tracker visually indicates the direction of prominent sounds, displaying them in a 360° radar for complete immersion during gameplay.
Pushing the Envelope of Connectivity
Wi-Fi 6E
Dragon 2.5Gb LAN
USB4 Type-C
The Power of Wi-Fi 6E
Wi-Fi 6E introduces the 6 GHz band for faster, congestion-free connections, while supporting OFDMA for efficient data delivery and MU-MIMO to keep multiple devices running smoothly. With 160 MHz wide channels, it offers substantial bandwidth, ideal for high-speed, uninterrupted streaming and gaming experiences.
Asrock ( Asrock Z890 PRO RS WIFI white DDR5 LGA1851 ATX Motherboard )
Unique Feature
Superb Productivity
- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
- Thunderbolt™ 4 Type-C Ports (40 Gb/s)
Rock-Solid Durability
- 16+1+1+1+1 Power Phase, Dr. MOS for VCore+GT with Enlarged Heatsink Armor
- Memory OC Shield
- Flexible Integrated I/O Shield
Ultrafast Connectivity
- 2.5G LAN, 802.11axe Wi-Fi 6E Module
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker
CPU
- Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM)
- Supports Intel® Hybrid Technology
- Supports Intel® Turbo Boost Max 3.0 Technology
- Supports Intel® Thermal Velocity Boost (TVB)
- Supports Intel® Adaptive Boost Technology (ABT)
- Integrated NPU for dedicated AI acceleration
Chipset
- Intel® Z890
Memory
- Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 9066MHz+(OC)*
- Supports Clocked Unbuffered DIMM (CUDIMM)
- Max. capacity of system memory: 256GB
- Supports Intel® Extreme Memory Profile (XMP) 3.0x
*1DPC 1R Up to 9066+ MHz (OC), 5600 MHz Natively.
1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively.
2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively.
2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively.
BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
Graphics
- Intel® Xe LPG Graphics Architecture
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
- 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz*
* Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Supports two 4K displays or one 8K display
Only the CPU's embedded graphics can be displayed through Thunderbolt™ ports.
If you want to display to a Thunderbolt™ monitor, please use CPU models with embedded graphics.
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio
LAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
Wireless LAN
- 802.11axe Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ac/ax/axe
- Supports Dual-Band 2x2 with extended 6GHz band support*
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.3
- Supports MU-MIMO
*The Wi-Fi 6E module is supported by Microsoft Windows® 11 only. The availability of the 6GHz band will depend on the different regulation status of each country and region.
It will be activated (for supported countries) through Windows® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.
Slots
CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode*
- 1 x PCIe 4.0 x1 Slot (PCIE2)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
* PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots.
Supports NVMe SSD as boot disks
Storage
CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connectors
* Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB
CPU:
- 2 x Thunderbolt™ 4 Type-C (Rear)
Chipset:
- 1 x USB 3.2 Gen2x2 Type-C (Front)
- 1 x USB 3.2 Gen2 Type-A (Rear)
- 6 x USB 3.2 Gen1 (2 Rear, 4 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)
* All USB ports support ESD Protection
Connector
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
- 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 1 x 24 pin ATX Power Connector
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
CPU_FAN2, CHA_FAN1~5 and AIO_PUMP support the fan power up to 3A (36W).
CPU_FAN2, CHA_FAN1~5 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O
- 2 x Antenna Ports
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)*
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
- 2 x USB 3.2 Gen1 Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / Microphone
* Supports USB PD 3.0 up to 5V@3A (15W) charging
Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC*
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- 1 x Screw for M.2 Socket
- 1 x Standoff for M.2 Socket
Form Factor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- 2oz Copper PCB
OS
- Microsoft Windows® 11 64-bit
Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
