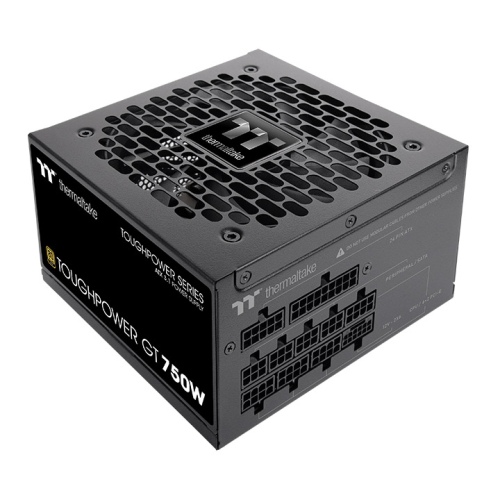

Thermaltake TOUGHPOWER GT 750W 80 PLUS Gold Power Supply
Available Colors
Thermaltake ( Thermaltake TOUGHPOWER GT 750W 80 PLUS Gold Power Supply )
Toughpower GT Series
The fully modular Toughpower GT series ranges from 650W to 850W and is built to deliver 80 PLUS Gold efficiency. With an ample 5-year warranty, the Toughpower GT series satisfies the market, catering to value-oriented users seeking a new power supply with reliable performance.
Ultra Quiet 120mm Hydraulic Bearing Fan with Smart Zero Fan
Featuring a 120mm Hydraulic Bearing Fan to keep friction at a remarkably low level. Designed with our Smart Zero Fan technology to adjust fan speed and minimize undesired noise.
High Amperage Single +12V Rail & High-Class Technologies
Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.
AC INPUT
Input Voltage: 100 - 240V~
Input Current: 10A Max.
Frequency: 50Hz-60Hz
DC OUTPUT
+3.3V
+5V
+12V
-12V
+5VSB
Max Output Current
20A
20A
62.5A
0.3A
3A
Max Output Power
100W
750W
3.6W
15W
Total Power
750W
Non Modular Low-Profile Flat Cable
Soft black cables come with sleeve cabling design to make cable installation an easy task while powering the system at an advantageous voltage.
Connector TypeConnector QuantityCable QuantityCable LengthMain Power
(24Pin)X 1
X 1550mmATX 12V
(4+4Pin)X 2
X 2700mmPCIe
(6+2Pin)X 4
X 2600mm+150mmSATA
(5Pin)X 6
X 2450mm+150mm+150mmPeripheral(4Pin)X 4
X 1400mm+150mm +150mm+150mm
Built-in Industrial Grade Protection
To protect the hardware, Toughpower GT series is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).
OCP
- Over Current Protection
OVP
- Over Voltage Protection
UVP
- Under Voltage Protection
OPP
- Over Power Protection
SCP
- Short Circuit Protection
OTP
- Over Temperature Protection
80 PLUS Gold Certified
Toughpower GT series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold.
Thermaltake ( Thermaltake TOUGHPOWER GT 750W 80 PLUS Gold Power Supply )
BrandThermaltake
Model PS-TPT-0750FNFAGU-3
Details
Color BlackTypeATX 3.1 Compatible
Maximum Power 750W
Fans 12cm Hydraulic bearing fan
PFC Active
Max PSU Length 140mm
Modular Full Modular
Power Good Signal 100-250msec
Hold-up Time >17msec at 80% load
Energy-Efficient Meet 80 PLUS Gold at 115Vac input.
Protection OVP/UVP/OCP/OPP/OTP/SCP
Input Voltage 100 - 240V
Input Frequency Range 50/60 Hz
Input Current 10A Max.
Output +3.3V@20A, +5V@20A, +12V@62.5A, -12V@0.3A, +5VSB@3A
MTBF >100,000 Hours
Approvals CE/UKCA/ICES/TUV/LVD/RCM/CB/FCC/cTUVus/BSMI/CCC/BIS/S-MARK
Connectors 1 x 12VHPWR (12+4) PCIe / 1 x 24 pin (20+4) ATX / 4 x 4 pin Peripheral / 4 x 8 pin (6+2) PCIe
Cable Spec 1 x Main Power (24Pin) x1 550mm
2 x ATX 12V(4+4Pin) x1 700mm
2 x PCIe(6+2Pin) x2 600mm+150mm
1 x PCIe(12+4Pin) 300W x1 600mm
2 x SATA (5Pin) x3 450mm+150mm+150mm
1 x Peripheral (4Pin) x4 400mm+150mm+150mm+150mm
Dimension & Weight
Dimensions 150 x 86 x140mm
