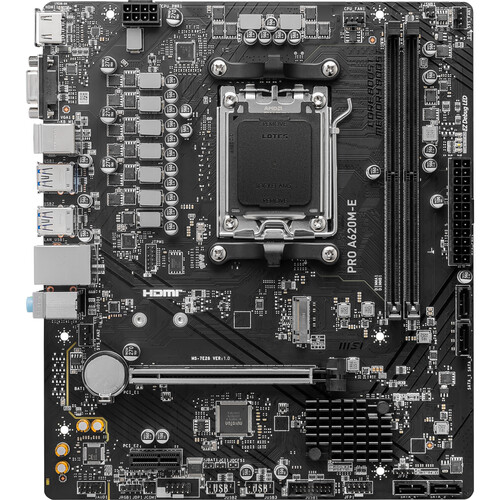

MSI PRO A620M-E AM5 DDR5 Motherboard

( MSI PRO A620M-E AM5 DDR5 Motherboard )

ChipsetAMD A620

CPUSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

Socket AM5

Memory2x DDR5, Maximum Memory Capacity 128GB

Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 6800+ MHz

• 1DPC 2R Max speed up to 6000+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports AMD EXPO

Onboard Graphics1x HDMI™

Support HDMITM 2.1, maximum resolution of 4K 60Hz*

1x VGA

Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot1x PCI-E x16 slot

• Supports x16 (For Ryzen™ 9000 and 7000 Series processors)

• Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)

• Supports x4 (For Ryzen™ 8500/ 8300 Series processors)

1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

AudioRealtek® ALC897 Codec

7.1-Channel High Definition Audio

Storage1x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G

RAIDSupports RAID 0, RAID 1 and RAID 10 for SATA storage devices

USB2x USB 2.0 (Rear)

4x USB 2.0 (Front)

4x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

LANRealtek® RTL8111H Gigabit LAN

Internal IO1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

2x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 5Gbps Type A ports

LED FEATURE4x EZ Debug LED

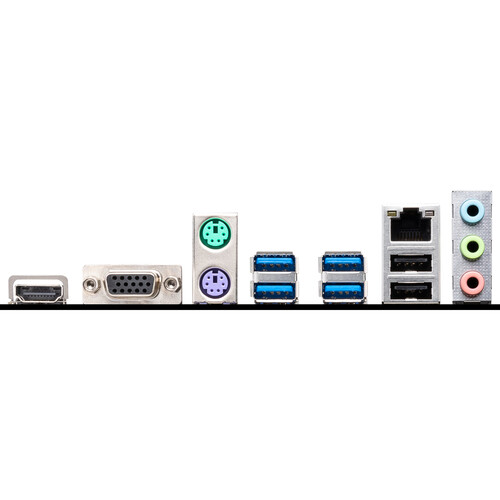

BACK PANEL PORTS

1.HDMI™

2.VGA

3.Keyboard/Mouse

4.USB 3.2 Gen 1 5Gbps (Type-A)

5.LAN port

6.Audio connectors

7.USB 2.0
